Solar Cell I-V Tester

Overview

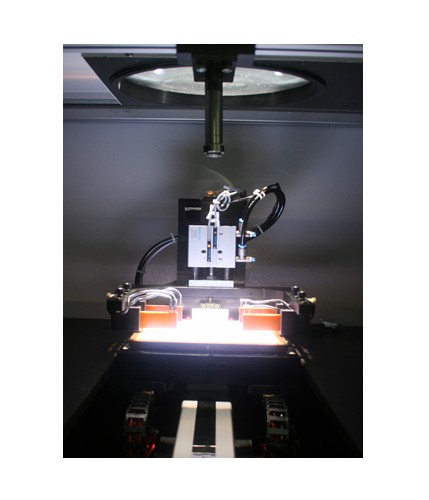

The new VS-6820 provides Cell manufactories & laboratories a new experience in testing and measuring of photovoltaic cells. It provides complete coverage of testing parameters and measurement requirements from most international standards. Its test methods, procedure & equipments are compliant with International standard IEC 60904. Calibration of reference cell is performed at ISE Fraunhofer Germany, and is traceable to PTB.


Features

four Test Sequences & Criteria of each parameter are programmable and run automatically:

A complete I-V measurement in light condition

• Short circuit current, Isc
• Open circuit voltage, Voc
• Peak power, Pmax, Vmp and Imp
• Cell efficiency, ŋ and fill factor FF
• Cell temperature and light intensity

A complete I-V measurement in dark condition

• Shunt resistance, Rsh
• Leakage current at specified voltage

A complete I-V measurement at three light intensities

• Series resistance (Rs) measurement

A complete I-V measurement at different cell temperature
Temperature Coefficient measurement

• Temperature coefficient of Isc: α (mA/ºC)
• Temperature coefficient of Voc: β (mV/ ºC)
• Temperature coefficient of Pmax: γ (mw/°C)
